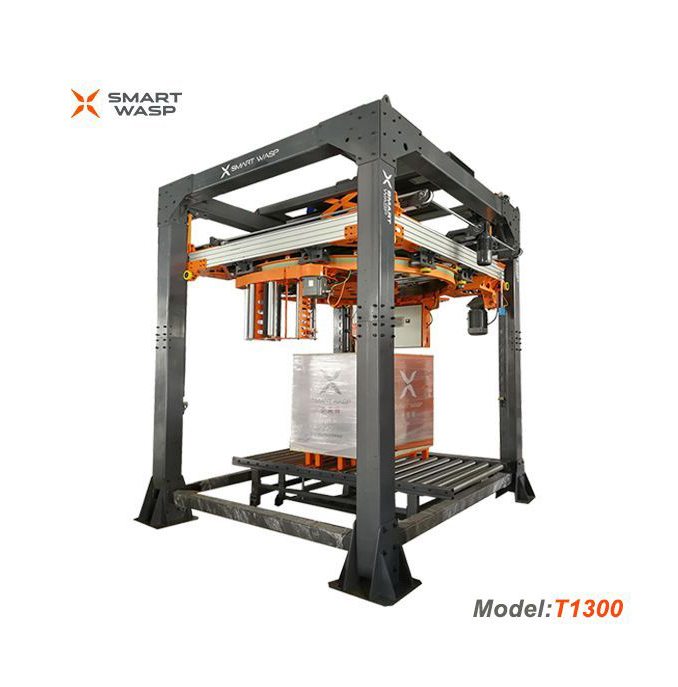

Ring Wrapping Machine Application
1. Pallet stretch wrapping machine uses LLDPE stretch film as the main
packing material to wrap the bulk cargos stacked on the pallet.
2. Film provides extra support during transportation and storage to protect
them from dust, moisture or damage.
3. The pallet wrapping machine has been widely used in industries such as
glassware, tools, electric & electronic, paper, pottery, food & beverage, etc.
Automatic Pallet Wrapper Main Features
1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed as per the customers’
specific requirements.
3. Photoelectric sensor test pallet length automatic.
4. Programmable control and frequency converter is available.
5. PLC control.
6. Pallet stretch wrapping machine has a soft start and soft stop.
7. Fully automatic cut and clamp film.
More stable
Servo drives for lifting-up, lifting-down, rotating, film feeding, more stable transmission scheme and new 4.0 software system make the whole equipment run stably.

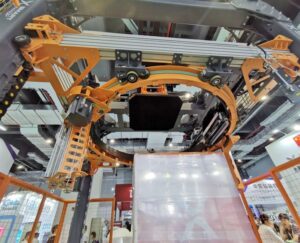

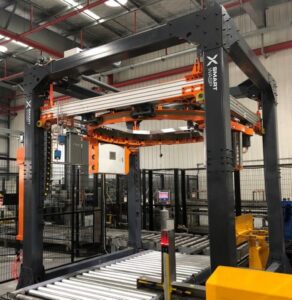

Ring Wrapping Machines have a conveyor system that transports the pallets to the wrapping station. The wrapping station usually consists of a turntable that rotates the pallet and a wrapping arm that moves up and down to apply the stretch film. The machine can be programmed to apply the stretch film to the pallet in a specific pattern or with a particular number of wraps, ensuring that the load is secure and stable for transportation.
More energy-efficient
Compared with the Second-generation, the Third generation has more stable performance, higher speed, but the total power has lowered 26.5% (Total power of Third-generation is 11.75KW, Second-generation is 16KW).
A high-speed fully automatic pallet wrapping machine is a piece of equipment used to wrap pallets of products securely for transportation and storage. The machine is designed to wrap the pallets automatically, which saves time and effort compared to manual wrapping.
More economical
Standard constant force film feeding system, fixed-point and quantitative wrapping system make every inch of the film get the greatest value.
Some high-speed fully automatic pallet-wrapping machines have the capacity to wrap multiple pallets simultaneously, reducing the time taken to wrap a large number of pallets. These machines may also include features such as pre-stretch film delivery systems, automatic film cutting, and film break detection to minimize downtime and increase efficiency.
Safer

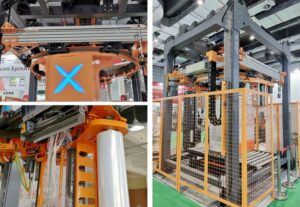

Add more automatic safety protection, enhance security performance. After pressing the emergency stop button, the rotating distance reduces 75%, lifting distance reduces 90%: The pallet can be conveyed to the wrapping position, only when pallet height is smaller than max wrapping height, otherwise it can’t. When the operator changes the film, the whole equipment is under automatic protection and can’t be started. A high-speed fully automatic pallet wrapping machine is an essential piece of equipment for companies that need to wrap large volumes of pallets quickly and efficiently, while also ensuring the safety and security of their products during transportation and storage.
More simple
Due to the modular design of the mechanism, every part has its ID, and can be changed easily, which makes the whole components upgraded to create the new generation equipment. Modular design of electric appliances makes system docking easier and more convenient.
Visual HMI, simple to operate, easy to understand.
Better Components
SIEMENS Servo
SICK proximity switch, photoelectric sensor
Weidmuller terminal board
SIEMENS PLC
German FESTO Air cylinder
More new technology
100% film-clamping effect
Mechanical film-cutting
Whole film roping function
TECHNICAL FEATURES
| Model | Smart Wasp T1300 | Spare Parts | Brand |
| Maximum wrapping speed | 456090loads/hour | Inverter | SIEMENS |
| Max pallet size | 1.2×1.2m | Position sensor | SICK |
| Maximum Wrapping Height | 2000mm | PLC | SIEMENS |
| Ring Speed | 0-30RPM(Adjustable) | Travel Switch | OMRON |
| Ring Size | 2200mm | Ring drive Motor | SEW |
| Ring Drive Power | 1.5PH | Relay | OMRON |
| Film &Clamp Cut | Automatic (Heat type) | Touch screen | SIEMENS |
| Max Load Weight | 2000KG | Switch | Schneider |
| Standard Film Width | 500mm | Cylinder | FESTO & AIRTAC |
| Constant Film Delivery Force | Standard | Up and down motor | CPG |
| Standard Pre-Stretch | 250% | Film carriage motor | SIEMENS servo motor |
| Conveyor system | Stainless Steel 201 diameter: 76mm | ||
| Film Capacity | Diameter: 250mm | Special Process | Introduction |
| Film Delivery System | Servo motor control | Frame | Steel |
| Up and down drive system | Belt drive | Printing | Metallic Paint |
| Top pressure function | Optional | Fall-proof | Anti drop system |
| Lifting up conveyor | Optional | Cutting | Laser |
| Top sheet dispenser | Optional | ||
| Paper corner fixer | Optional | ||
| Machine Size | 3.2x3x4m | ||
| Machine weight | 4000KG | ||
| Voltage | 380V/60HZ |
FAQ
Q: What is an automatic wrapping machine?
A: An automatic wrapping machine, also known as an automated pallet wrapper or auto wrapping machine, is a device that wraps pallets or other large items with stretch wrap or other materials to secure and protect them during transport or storage. The machine automatically applies the wrapping material around the pallet or object, eliminating the need for manual labour and improving efficiency.
Q: What are the benefits of using an automatic wrapping machine?
A: Using an automatic wrapping machine offers several benefits, including improved efficiency and productivity, reduced labour costs, increased safety, and improved load stability and protection during transport or storage.
Q: What types of wrapping materials can be used with an automatic wrapping machine?
A: Automatic wrapping machines can be used with a variety of wrapping materials, including stretch wrap, shrink wrap, and other types of plastic film. Some machines can also be used with paper, foil, or other materials.
Q: What are the different types of automatic wrapping machines?
A: There are several types of automatic wrapping machines, including rotary arm, rotary ring, turntable, and orbital wrapping machines. Each type has its own unique features and benefits, and the choice of machine will depend on the specific needs and requirements of the application.
Q: What factors should be considered when selecting an automatic wrapping machine?
A: When selecting an automatic wrapping machine, factors to consider include the type of wrapping material to be used, the size and weight of the pallet or object being wrapped, the production rate and throughput requirements, and the available space and budget.
Q: Can an automatic wrapping machine be integrated into an existing production line?
A: Yes, an automatic wrapping machine can be integrated into an existing production line, provided that the machine is compatible with the existing equipment and there is sufficient space and resources available.
Q: How easy is it to operate an automatic wrapping machine?
A: Most automatic wrapping machines are designed to be easy to operate, with intuitive controls and user-friendly interfaces. However, some machines may require specialized training or technical knowledge to operate effectively.
Q: What maintenance is required for an automatic wrapping machine?
A: Automatic wrapping machines require regular maintenance to ensure optimal performance and longevity. This may include cleaning, lubrication, and replacement of worn or damaged parts. It is important to follow the manufacturer’s recommendations for maintenance and to have the machine inspected regularly by qualified technicians.
